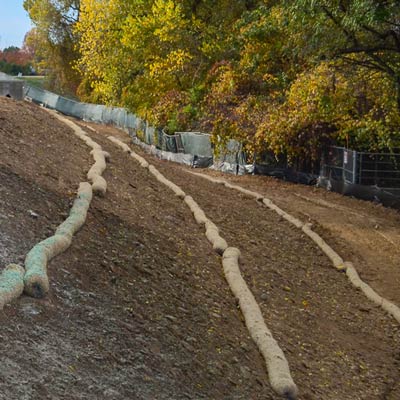

On slopes, installation should be on
the contour with a slight downslope in order to prevent ponding behind
the wattle.
Wattles should always be installed in shallow trenches
constructed on the contour.
Anchoring of wattles is necessary and can
by accomplished using 1" x1" x 18" wood stakes penetrating through the
center of the wattle into the soil approximately 6 inches.
The
frequency of anchoring should be a minimum of 4 - 5 stakes, equally
spaced, per 25 feet of wattle installation.
flat surface

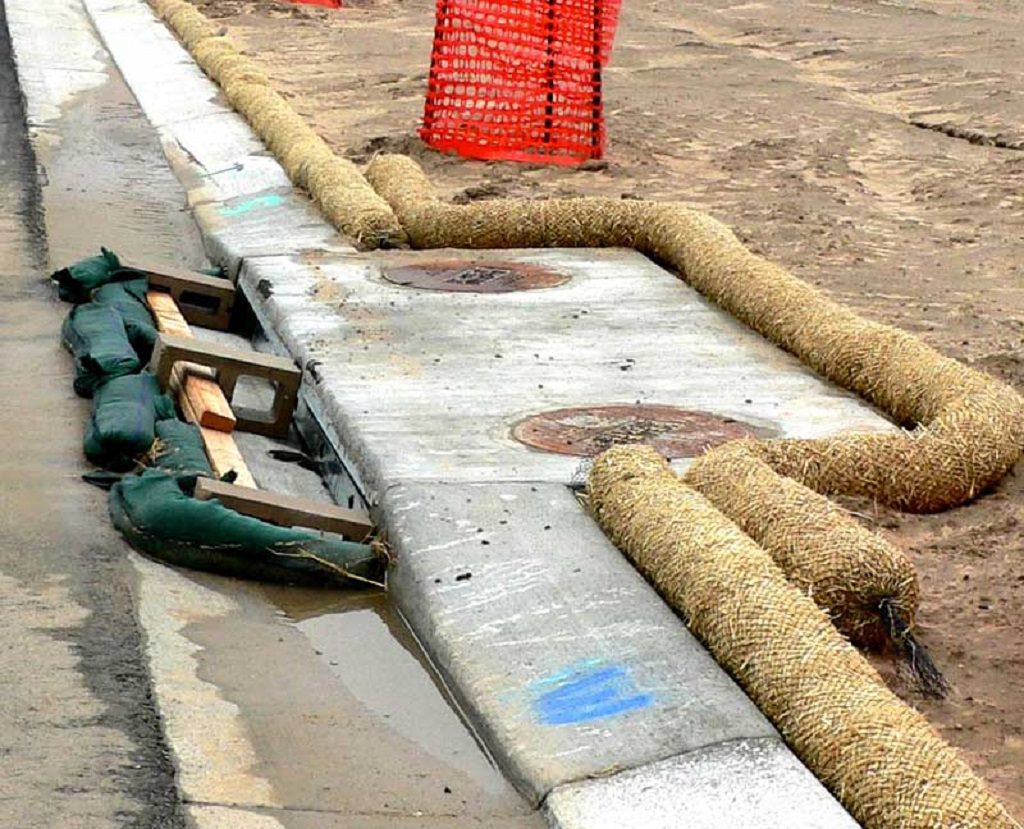

Wattles installed on flat surface as perimeter control or inlet
protechion may not require an anchor trench and can be secured directly
to the ground surface.
prepare site
Prepare site by removing debris and obstructions and minimize
disturbances to yeild a smooth, even ground surface. If seeding is
required, place seed, as specified, prior to instllation of wattles
anchor trench
Determine if an anchor trench is required. Based on site specific
characteristics and product properties. Map out placement of wattle to
determine location and profile of anchor trench
overlapping
A one foot overlap, directed up-gradient is recommended for most
products; however abutting and securing with a common stake is
recommended for more porous wattles.
channel install
For channel applications, the wattle should be placed across the width
of the channel and perpendicular to the center line of the channel. The
wattle must to installed suffiently up the channel banks to prevent
flanking or concentrated flow around the ends of the wattle

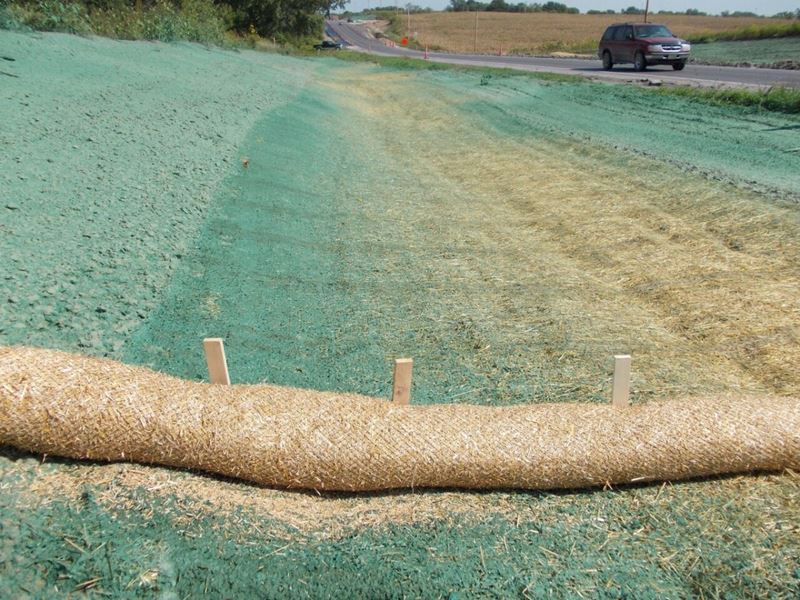

staking
Secure the wattle with stakes or pins along the length of the unit.
Stakes should be driven in vertically, perpendicular to the ground. An
optional method is to drive stakes on both sides of the wattle and lace
rope between the stakes holding the wattle tightly to the slope.
slopes
For slope applications, the terminal ends of the wattle should be turned
45 degrees upslope and secured by stakes to prevent water flow around
the terminal ends of the wattle.
compacted soil
For trenched wattles, place soil on up-slope side of the wattle and
compact it well. The compacted soil is placed to act as a sealant for
the wattle and soil to prevent erosion from starting under the wattle.
